User Guide

Configure NVIDIA IMEX Service

Last updated: 2026-02-05 17:59:31

Operation Scenarios

Configure NVIDIA IMEX service in the following situations:

  • Multi-node GPU training: Run distributed deep learning training across multiple GPU servers
  • GPU cluster expansion: Add new nodes to an existing GPU cluster and configure interconnect
  • Interconnect reconfiguration: Update IMEX configuration after rack topology changes or IP address modifications

Preconditions

Before configuring NVIDIA IMEX service, ensure that:

  • Multiple bare metal servers are deployed in the same rack
  • NVIDIA GPU drivers are properly installed on all nodes (verify with nvidia-smi)
  • The nvidia-imex package is installed on all nodes (verify with systemctl status nvidia-imex)
  • You have SSH access to all servers in the rack
  • You have sudo/root privileges on all servers

Operation Steps

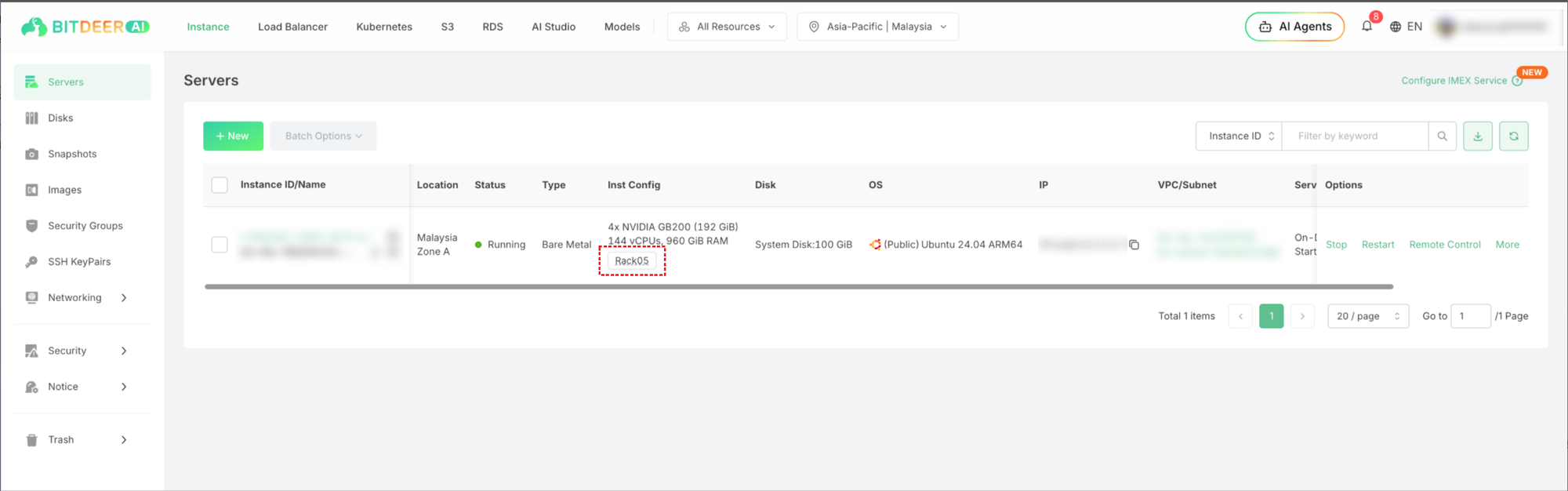

Step 1: View Rack Information and Server IPs

  1. Log in to the Bitdeer AI Cloud console
  2. Navigate to Compute → Bare Metal Servers
  3. Click the Rack Info entry to view all servers in the same rack
  4. Note down all internal IP addresses of the servers you want to configure
View Rack information

Step 2: Connect to Server via SSH Key

  1. Open your terminal or SSH client
  2. Connect to the server using SSH key authentication:
ssh -i /path/to/private_key root@<internal-ip>

Example:

ssh -i ~/.ssh/id_rsa [email protected]

Step 3: Configure IMEX Service

  1. Open the IMEX nodes configuration file:
sudo vim /etc/nvidia-imex/nodes_config.cfg
  1. Add all internal IP addresses of the servers that need to interconnect, one per line:
192.168.1.10
192.168.1.11
192.168.1.12
192.168.1.13
  1. Save the file and exit the editor
  2. Restart the nvidia-imex service:
sudo systemctl restart nvidia-imex.service
  1. Verify the service status:
sudo systemctl status nvidia-imex.service

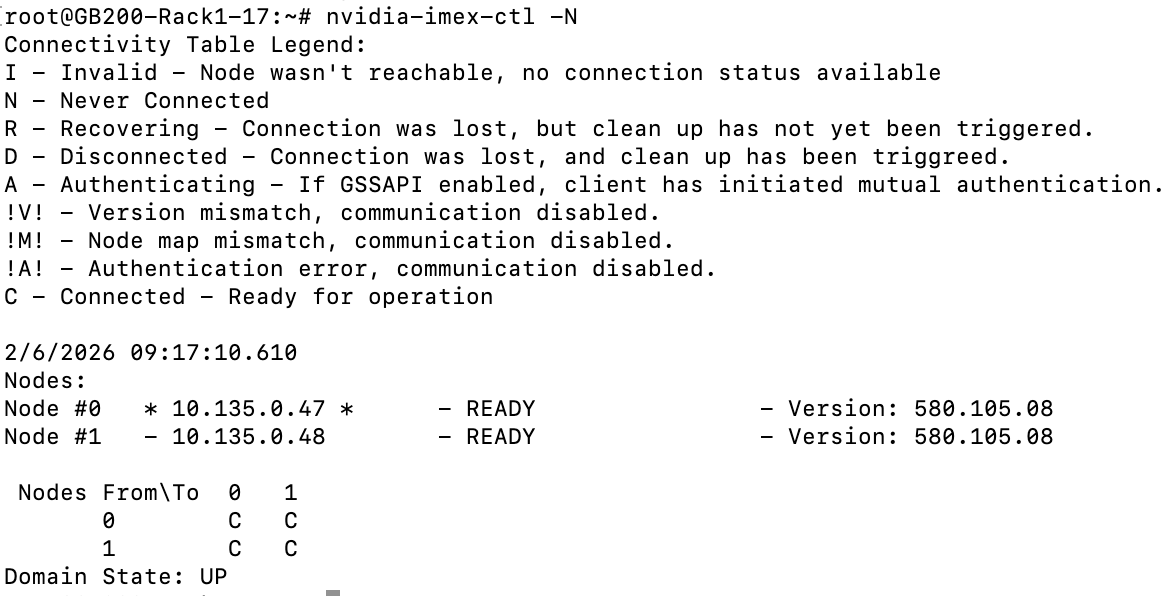

  1. Verify all nodes are discovered and connected:
nvidia-imex-ctl -N
All IMEX nodes connected and discovered

Note:

  • Include ALL server IPs in the configuration, including the current server's own IP
  • Each server in the rack should have an identical nodes_config.cfg file
  • Repeat Step 2 and Step 3 on each server in the rack
